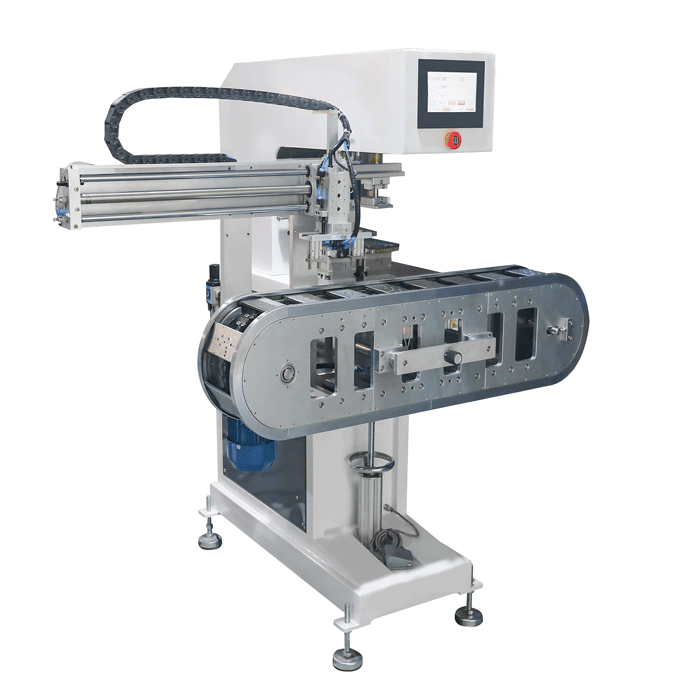

Electronic cigarette shell tank belt two-color pad printer:
Functions and features
• Touch screen operation: Through the touch screen operation interface, you can intuitively set various parameters of the two-color pad printer, such as printing speed, two-color overprinting accuracy, printing times, etc.
• Tank belt conveyor workbench: The tank belt conveyor workbench can smoothly convey electronic cigarette shells, cigarette metal shells and other items waiting for printing. Its stable conveying process can ensure the accurate position of the items during printing, which is conducive to improving the printing quality.
• Environmentally friendly oil cup ink supply method: This ink supply method is more environmentally friendly and can effectively control the amount of ink and reduce waste. At the same time, the environmentally friendly oil cup can ensure the quality and stability of the ink, provide uniform ink supply for two-color printing, and make the printed pattern colorful and full.
• Automatic manipulator unloading: The automatic manipulator unloading function realizes automatic grabbing and placement after printing, improves production efficiency and reduces labor costs. In addition, the unloading process is accurate and avoids product damage that may be caused by manual unloading.
Applicable scenarios
The two-color pad printer is mainly suitable for printing electronic cigarette shells and cigarette metal shells. It can meet the printing needs of these products for appearance patterns and logos, and improve the beauty and recognition of the products. In the electronics and tobacco industries, this two-color pad printer can effectively improve production efficiency and product quality.
Two colors pad printer with tank-conveyer//Structure
Working table
16 stations tank conveyer-type working table
Shuttle stroke
125mm
Ink supply system
Closed -type system
Plate type and size
10mm Thick steel plate.
Pad dropping control
Simple-cylinder , simultaneously pressing
Ink drying
Heat air
Blanking
Manual
Two colors pad printer with tank belt//Usage and characters
Guide
Print both one color and two colors with conveyer worktable， Printing speed is more fast.
With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%.
With coin aluminum structure ensure more stabilization and long life.
Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
Can print almost small size objects . So sold very nice in the world.
Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
Sealed cup driven by independent cylinder , ink remove clean
Application︰
The workbench of the pad printing machine is the way of product delivery, and different types of workbenches have different adaptability to the shape and characteristics of the product. The tank belt type pad printing machine is equipped with a conveyor belt similar to the tank crawler structure, and the stations on the conveyor belt are advanced in sequence by rotating up and down to form continuous printing. Compared with the horizontal conveyor belt, the tank belt conveyor has no restrictions on the turning, so the product size can be larger and longer. In terms of overprinting accuracy, the accuracy of the tank belt pad printing machine is also higher. However, when it comes to fragile products such as glass and ceramics, the product should be removed in time to prevent the product from falling and breaking.
