Electronic cigarette Two colours pad printer with tank belt conveyor -

Electronic cigarette Two colours pad printer with tank belt conveyor

Model No.︰SP2-41216CTK

Brand Name︰KC

Country of Origin︰China

Unit Price︰US $ 13000 / pic

Minimum Order︰1 pic

Inquire Now

Product Description

Electronic cigarette shell tank belt two-color pad printer:

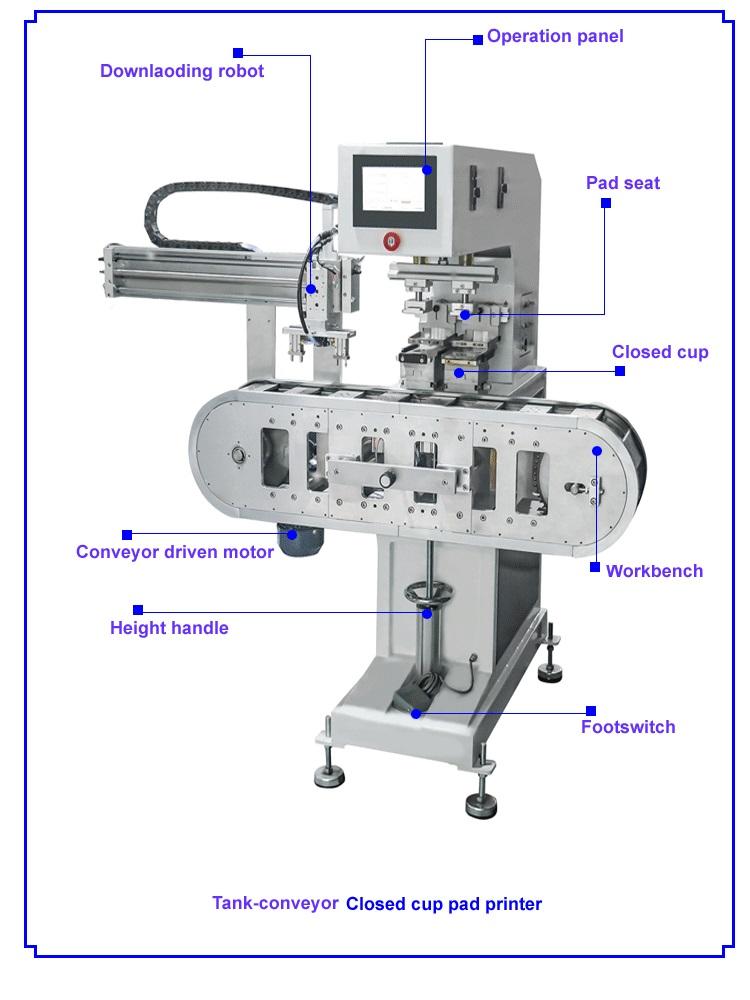

Functions and features

• Touch screen operation: Through the touch screen operation interface, you can intuitively set various parameters of the two-color pad printer, such as printing speed, two-color overprinting accuracy, printing times, etc.

• Tank belt conveyor workbench: The tank belt conveyor workbench can smoothly convey electronic cigarette shells, cigarette metal shells and other items waiting for printing. Its stable conveying process can ensure the accurate position of the items during printing, which is conducive to improving the printing quality.

• Environmentally friendly oil cup ink supply method: This ink supply method is more environmentally friendly and can effectively control the amount of ink and reduce waste. At the same time, the environmentally friendly oil cup can ensure the quality and stability of the ink, provide uniform ink supply for two-color printing, and make the printed pattern colorful and full.

• Automatic manipulator unloading: The automatic manipulator unloading function realizes automatic grabbing and placement after printing, improves production efficiency and reduces labor costs. In addition, the unloading process is accurate and avoids product damage that may be caused by manual unloading.

Applicable scenarios

The two-color pad printer is mainly suitable for printing electronic cigarette shells and cigarette metal shells. It can meet the printing needs of these products for appearance patterns and logos, and improve the beauty and recognition of the products. In the electronics and tobacco industries, this two-color pad printer can effectively improve production efficiency and product quality.

Two colors pad printer with tank-conveyer//Structure
Working table	16 stations tank conveyer-type working table
Shuttle stroke	125mm
Ink supply system	Closed -type system
Plate type and size	10mm Thick steel plate.
Pad dropping control	Simple-cylinder , simultaneously pressing
Ink drying	Heat air
Blanking	Manual
Two colors pad printer with tank belt//Usage and characters
Guide	Print both one color and two colors with conveyer worktable， Printing speed is more fast. With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%. With coin aluminum structure ensure more stabilization and long life. Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate; Both thick steel plates and thin steel plates installed , Choose according to customer requirements. Can print almost small size objects . So sold very nice in the world. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples; One of china famous brand pad printer. Shuttle stroke: 125mm.
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
Two colors pad printer with tank conveyer //Parameter
Technical parameters	SP2-41016CTK	SP2-41216CTK
	Max. plate size: 100×250mm； Max printing area: 85×130mm; Max. worktable area: 90×125mm； Max. printing speed: 1200pcs/hr； Printable color quantity:2 Cup diameter: Φ90mm. Shuttle stroke: 125mm.	Max. plate size: 100×300mm； Max printing area: 85×170mm; Max. worktable area: 90×125mm； Max. printing speed: 1200pcs/hr； Printable color quantity:2 Cup diameter: Φ90mm. Shuttle stroke: 125mm
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package dimension:1150×840×1410mm Gross weight: 185 CBM: 1.362
H.S.Code	8443198000
Certicate	CE
Two colors pad printer with tank conveyer//Advantage
Function	Microcomputer program controlling operating technique ; Streamline design ensure dexterous Appearance impressions; Coin aluminum structure frame coated Gross-Green color paint; 16-Station tank conveyer working table installed to get more fast printing speed ; Independency pressure adjustment of pad press-printing and picking up ink; Either testing or running mode to operate ; Closed cup to store and coating ink , save ink and protect environment Automatism digital count function; Double colors pad printing with drying through blowing hot air: Ten grade printing speed setting, auto, semi-auto, testing operation mode setting; Sealed cup driven by independent cylinder , ink remove clean

Application︰
The workbench of the pad printing machine is the way of product delivery, and different types of workbenches have different adaptability to the shape and characteristics of the product. The tank belt type pad printing machine is equipped with a conveyor belt similar to the tank crawler structure, and the stations on the conveyor belt are advanced in sequence by rotating up and down to form continuous printing. Compared with the horizontal conveyor belt, the tank belt conveyor has no restrictions on the turning, so the product size can be larger and longer. In terms of overprinting accuracy, the accuracy of the tank belt pad printing machine is also higher. However, when it comes to fragile products such as glass and ceramics, the product should be removed in time to prevent the product from falling and breaking.
