• Cantilever structure: For this type of hydraulic hot stamping machine, the cantilever part is used to install hot stamping components, including hot stamping plates. The cantilever design makes the operating space more flexible and convenient for placing and removing plastic frames such as beer frames and beverage frames of different sizes. It can effectively avoid being blocked by other components during the loading and unloading of frames, and improve work efficiency.
• Hydraulic system: It is the power core of the machine. It is mainly composed of hydraulic pumps, hydraulic cylinders, hydraulic valves, etc. The hydraulic pump provides power to deliver hydraulic oil to the hydraulic cylinder. The hydraulic cylinder generates strong pressure through the movement of the piston, which is used to achieve pressure control during the hot stamping process. The hydraulic valve is used to adjust the flow and direction of the hydraulic oil, thereby accurately controlling the hot stamping pressure and speed. This hydraulic system can generate stable and large pressure to ensure that the hot stamping pattern is firmly attached to the plastic frame.
• Hot stamping components: including hot stamping plates and heating devices. The material of the hot stamping plate is usually a metal with good thermal conductivity, such as copper alloys. Its surface is finely processed to ensure the flatness and clarity of the hot stamping pattern. The heating device is used to heat the hot stamping plate to a suitable temperature, generally through electric heating, and has a temperature control system, which can accurately control the hot stamping temperature to meet the requirements of different plastic materials and hot stamping foils.
2. Working principle
• First, place the plastic frames such as beer frames and beverage frames that need hot stamping on the workbench of the hot stamping machine. After starting the machine, the hydraulic system starts to work, and the hydraulic cylinder pushes the cantilever to lower the hot stamping plate. During the descent process, the heating device has heated the hot stamping plate to a predetermined temperature. When the hot stamping plate contacts the hot stamping foil placed on the plastic frame and the surface of the plastic frame, the metal layer or pattern on the hot stamping foil will be transferred to the surface of the plastic frame under the pressure applied by the hydraulic system. After a certain period of time (this time depends on factors such as plastic material and hot stamping pattern), the hydraulic system controls the hot stamping plate to rise and completes a hot stamping operation.
3. Scope of application
• Mainly suitable for hot stamping of various food plastic frames, such as beer frames, beverage frames, soda frames, yogurt frames, etc. These plastic frames are generally made of plastics such as PP (polypropylene) and PE (polyethylene). This hot stamping machine can stamp brand logos, patterns, production dates and other information on the surface of plastic frames, which can beautify product packaging and improve brand recognition.
4. Operation process
• Preparation: Check whether the oil level of the hydraulic system is normal and ensure that the hydraulic pump, hydraulic cylinder and other components are working properly. Install a suitable hot stamping plate and set parameters such as heating temperature and hot stamping pressure according to the material and hot stamping requirements of the plastic frame. Place the hot stamping foil on the position of the plastic frame where hot stamping is required.
• Place plastic frame: Place plastic frames such as beer frames and beverage frames steadily on the workbench of the hot stamping machine to ensure accurate positioning for easy hot stamping.
• Hot stamping operation: Start the hot stamping machine and observe the working status of the hydraulic system and heating device. When the hot stamping plate descends and contacts the plastic frame, maintain a certain pressure and time to complete the hot stamping process. During the hot stamping process, pay attention to the hot stamping effect and adjust the parameters in time if there is any problem.
• Take out the plastic frame: After the hot stamping is completed, wait for the hot stamping plate to rise, take out the hot stamped plastic frame from the workbench, and check the hot stamping quality. If you need to hot stamp the next plastic frame, repeat the above steps.

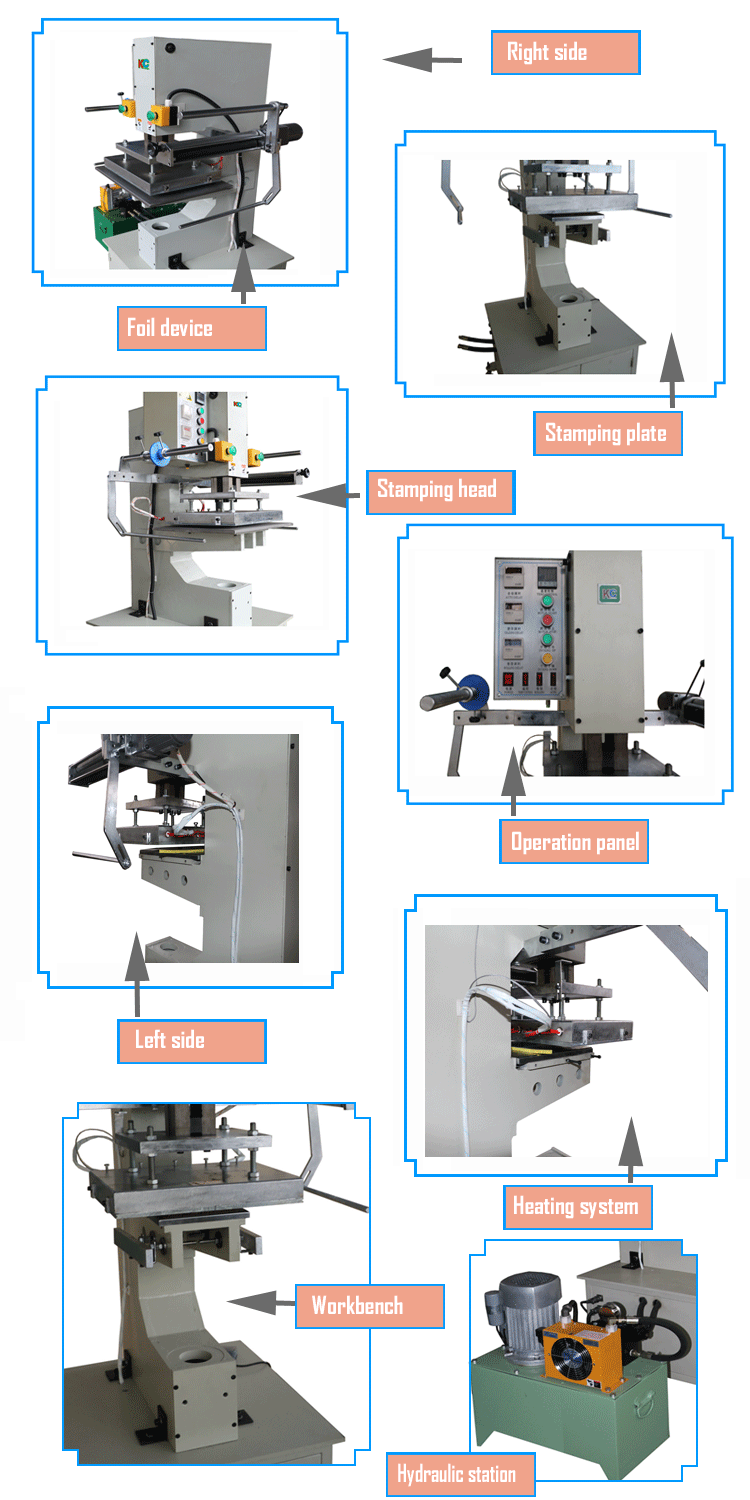

Hydraulic embossing stamping Machine //Structure
Working table
High strength Steel plate , size: 480*600mm.
Stamping Head drive
Hydraulic drive
Foil collecting method
Motor-drive , Collecting time adjustable
Press adjustment
Up-down of working table
Temperature control
Heating tube heat up，Automatically temperature controlling, temperature free setting
Foil collecting
Motor drive, Automatically collecting
Max Pressure
20T
Hydraulic embossing stamping machine //Usage and characters
Guide
Gilding - paper, leather, wood, plastic,
Baked - wood products, baked painting, gift box packaging;
Embossing - paper, leather, cloth.
Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
Hydraulic drive, pressure more large.
Application fields
Paper Gilding, Leather Impression, Wood ware Baking
Paper Concave-convex embossing， Cloth hot stamping,
Plastics Bronzing
Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
Woodiness objects baking-burns and Impress;
Leather bronzing and Molding;
Paper products concavo indentation.
Graduated disc of clock bronzing.
Die-cutting.
Hydraulic embossing stamping Machine //Parameter
Technical parameters
HH-TC3040LPB
HH-TC4040LPB
Hot plate area:300 ×400 mm
Working table area:480 ×600mm
Max printing pressure:20,000 Kg
Up and down distance:100mm
Heat wattage: 6×500W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC
Hot plate area:400 × 400 mm
Working table area:480 ×600mm
Max printing pressure:20,000 Kg
Up and down distance:100mm
Heat wattage: 6×500W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC 。
Works supply
110V-220VPower supply；
46# Hydraulic oil
Package list
Package size: 1.06*1.03*1.8m
Gross weight: 650kg;
CBM: 1.96524
Package size:0.75*0.55*0.83m
Gross weight: 85kg;
CBM: 0.342375
H.S.Code
8443198000
Certificate
CE
Hydraulic embossing stamping machine //Advantage
Function
Bench made of high strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
Application︰
There is a class of container products with larger external dimensions, such as shopping bags, turnover boxes, storage boxes, with larger hollow areas due to the items to be contained. When this type of product is hot stamped, the product must be supported to make it have a certain rigidity. For this reason, the cantilever hot stamping machine came into being. The so-called cantilever hot stamping machine is to customize the worktable into a three-sided suspended structure, which can The product with the hollow in the middle is directly set on the worktable for bronzing, which not only saves the space of the machine, but also improves the quality of the bronzing. The cantilever bronzing machine can be a pneumatic bronzing machine or a hydraulic bronzing machine. The positioning of the cantilever bronzing machine is very important, especially for products made of hard plastics such as turnover boxes. The use of external positioning will improve the positioning accuracy and operability. improve.
