產品描述

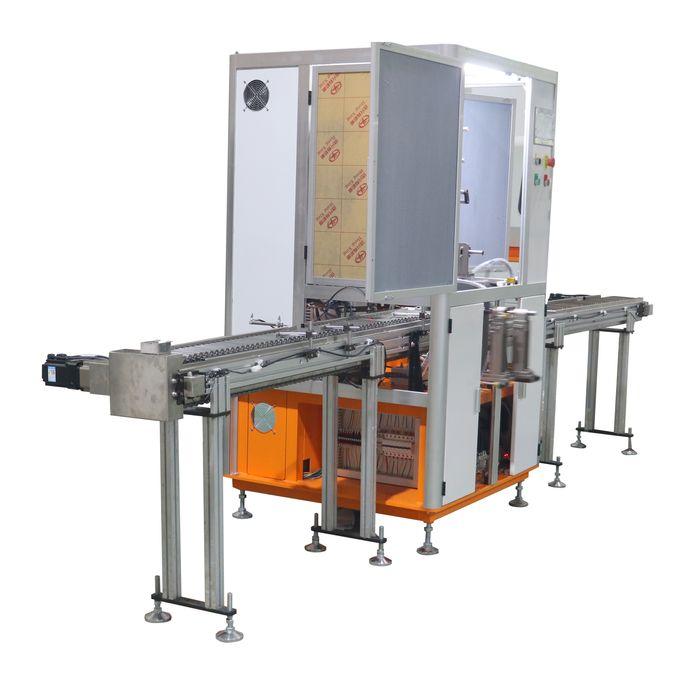

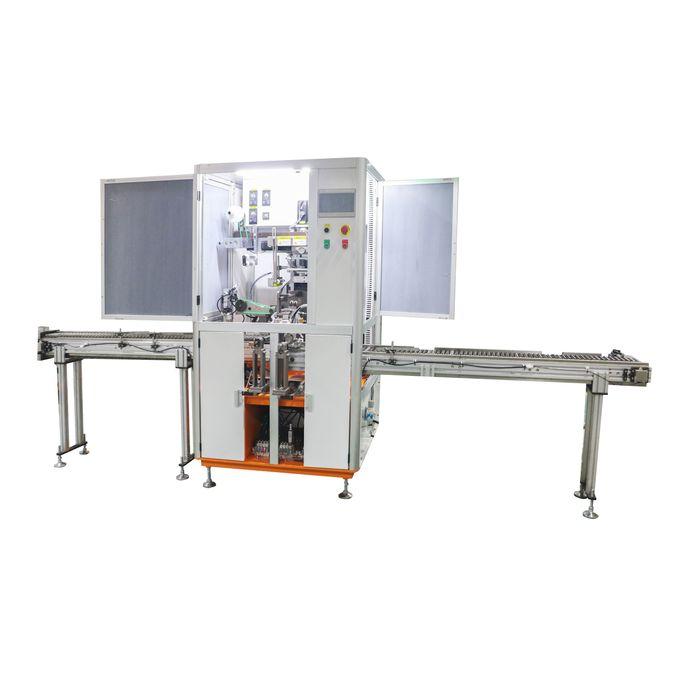

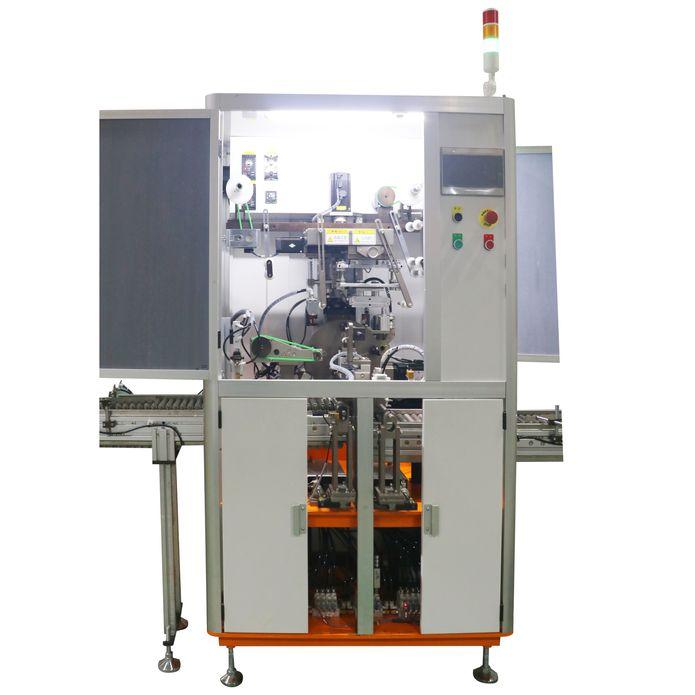

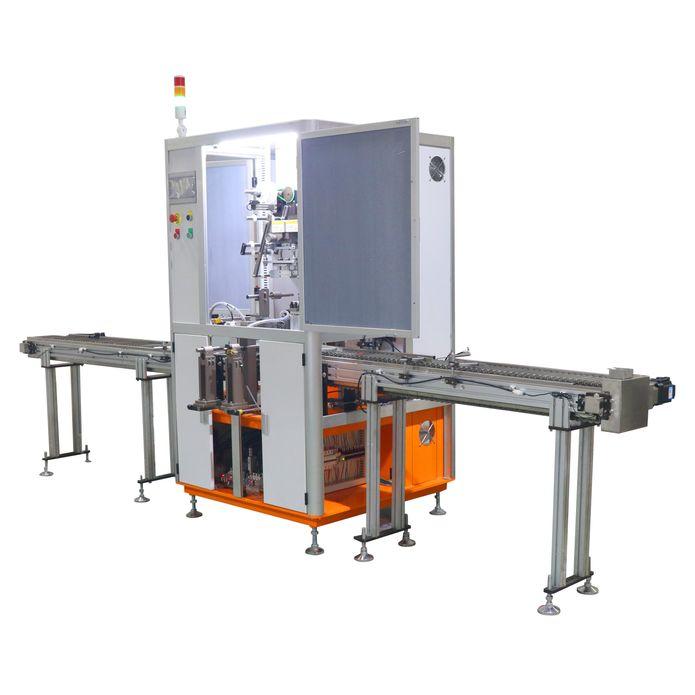

Machine description
- 100mm stainless steel conveyor ( Customized on customer products)
- Feeding robot
- 8 stations rotating workbench
- IR Heating system
- Independent Stamping Plate adjustment device
- Fixture for samples
- Automatic foil feeding and collecting device
- High accurate Splitter
- World brand electronic control components
- PLC Operation system
- Automatic positioning system
- Safety cover
Machine parts
- Inovance servo motor + Taiwan TBI screw drive ironing head;
- Non-hot feeding and anti-fooling sensor device for positioning;
- Japanese OMRON touch screen and Japanese Panasonic PLC control system;
- brands can also be made according to customer requirements)
- Main motor and gearbox are made in Italy TRANSTECNO;
- The turntable and fixture are all high-precision grinding;
- Adopt Japan SMC and Taiwan AirTAC solenoid valve and cylinder;
- Imported Texaco precision splitter;
- Prevent the phenomenon of abrasion during the working process of the product;
- The machine is equipped with a set of jigs.
用途和特性︰
The automatic hot stamping machine with vertical turntable is the most mature product of the hot stamping machine. The maximum diameter of the hot stamping product can reach 50mm. The speed is also faster than other hot stamping machines. The hot stamping machine with vertical turntable structure can be equipped with different feeding and unloading mechanisms according to the shape of the product. Generally, the product is placed on the conveyor belt, and is clamped by the feeding manipulator to the fixture of the turntable, and the surface treatment and positioning are carried out in turn. , bronzing and blanking.
產品優點︰
1. 高效生產：
上料系統，立式轉盤，自動燙金，自動下料，一體式緊湊設計，可實現連續化工作，燙金工件會被自動安裝在立式轉盤的不同工位上，隨着轉盤的轉動，依次經過燙金頭進行加工，生產效率得到顯著提高。燙金頭配備高效的加熱系統，能夠在短時間內達到設定的燙金溫度，並且保持溫度的穩定性，減少了預熱等待時間，加快了燙金的速度。
2. 高精度燙印：
立式轉盤由高精密的分割器進行控制，各部件採用CNC機床精密加工，確保工件在轉盤上的位置準確無誤，當工件到達燙金工位時，燙金版能夠 地與工件表面接觸，保証燙金圖案或文字的位置精度。
3. 自動化程度高：
• 自動控制：採用 的控制系統，如PLC 控制系統等，配備可視化的操作界面，如觸摸屏等，能夠實現對燙金過程的自動化控制，包括溫度、壓力、時間等參數的精確控制和調節。操作人員只需進行簡單的設置和操作，即可完成整個燙金過程，降低了人工操作的難度和勞動強度，同時也減少了人為因素對燙金質量的影響。
• 自動送料和收料：立式轉盤自動燙金機會根據產品的特征配備自動送料和收料裝置，使產品能夠自動完成送產品擺放到定位，檢測，燙金等全部工作，減少人工干預，提高了生產效率和工作安全性。
4. 穩定性強：
整機採用堅固的鋼結構框架，轉盤由高強度的軸承鋼經過車磨加工， 所有機械部件均由技術熟練的老師傅嚴格按照圖紙加工，保証了機器在長時間運行過程中的穩定性和可靠性，承受高速運轉和頻繁的燙金操作，減少了機器的故障發生率和維修成本。
• 溫度穩定性好： 的加熱系統和溫度控制技術，能夠確保燙金溫度的穩定性，避免溫度波動對燙金質量的影響。即使在長時間連續工作的情況下，也能保持穩定的燙金效果。
