Clothes rack is a rack for drying clothes. It can be made of metal, plastic, or wood. Generally, the brand logo is printed on its bright position. Due to the special structure and irregular shape of the clothes rack, it is more common to use a pad printer for printing.
First, make a fixture and place it on the workbench, then place the hanger on the fixture and fix it in place. Operate the pad printer, dip the pad head in the ink on the pad printing plate, move it forward to the top of the fixture, press down to print, and the logo will be transferred to the hanger.
According to the different materials of the hanger, you can choose metal ink or plastic ink.
Features
• Wide material adaptability: good printing effect can be achieved on the textured surface of wooden hangers and the smooth surface of plastic hangers.
• Clear printing effect: clear patterns, trademarks or text information can be accurately printed on the hanger to enhance the beauty and recognition of the hanger.
• Flexible operation: the pressure, ink volume and printing position of the pad head can be flexibly adjusted according to the shape, size and printing requirements of the hanger.
Applications
• Brand and decorative printing: used to print brand logos and patterns on hangers, such as printing retro style patterns on wooden hangers and printing fashion element patterns on plastic hangers, so that hangers are not only practical but also decorative.

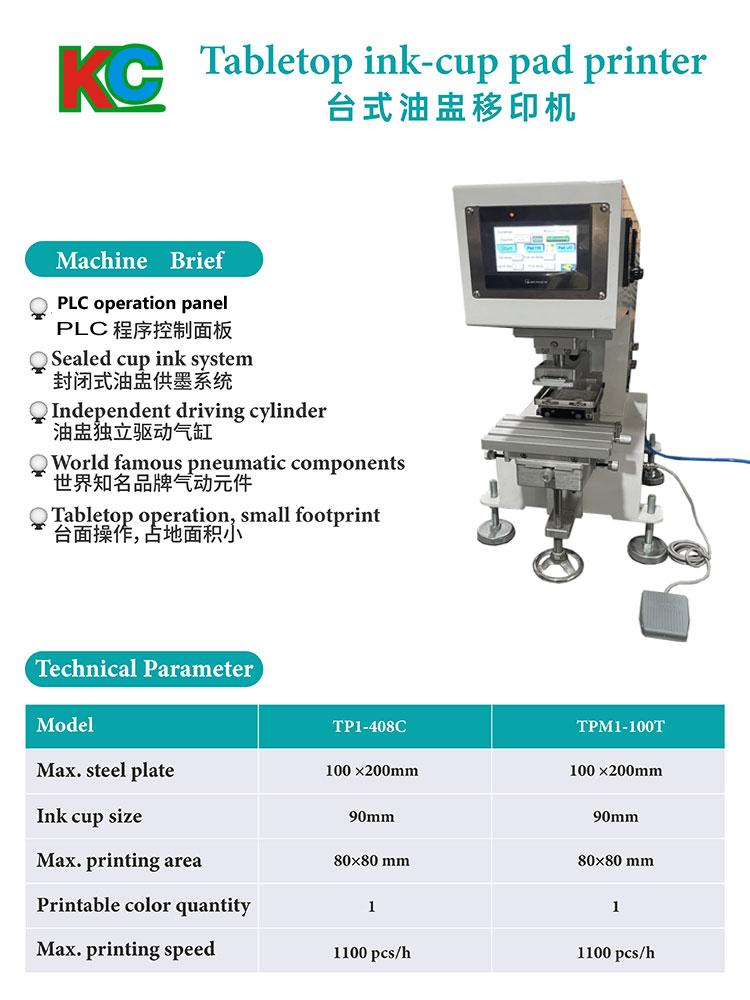

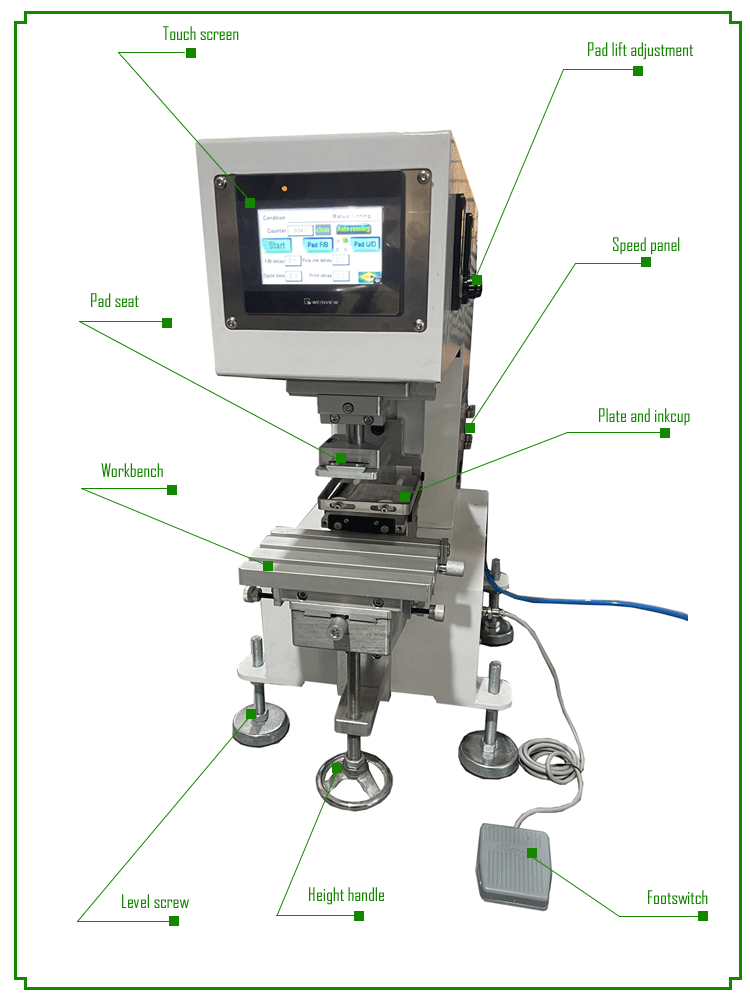

TP1-408C Tabletp one color pad printer //Structure
Working table
Standard working table with 3-size adjustment
Ink supply system
Closed -type system
Plate type and size
10mm Thick steel plate. Size ：100*200mm.
Pad dropping control
Simple-cylinder , simultaneously pressing
TP1-408C Tabletop one color pad printer//Usage and characters
Guide
Tabletop type pad printing machine;
With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%.
With coin aluminum structure ensure more stabilization and long life.
Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
Can print almost small size objects . So sold very nice in the world.
Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
PLC and touch screen panel control, the movement is more accurate and reliable;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;

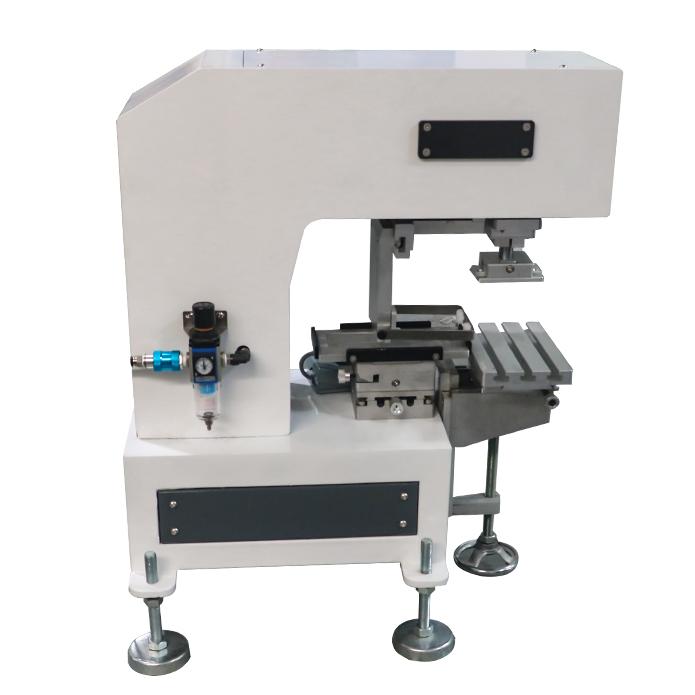

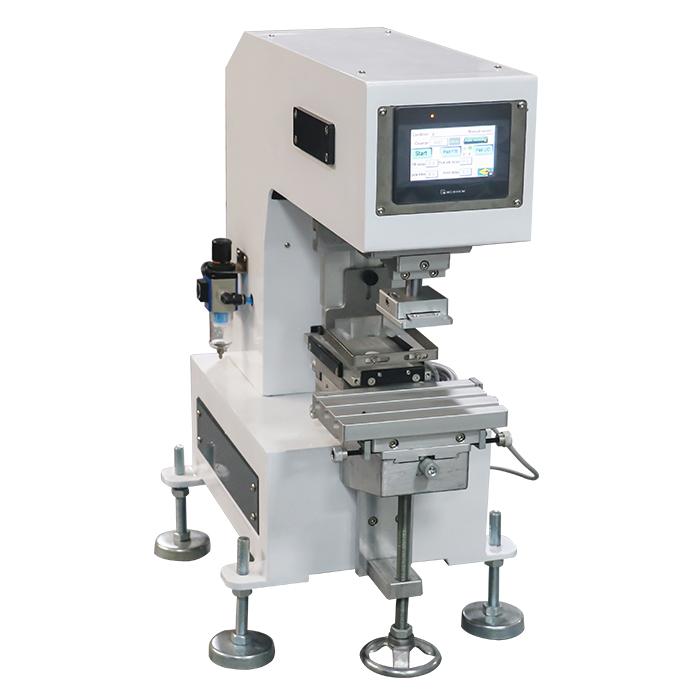

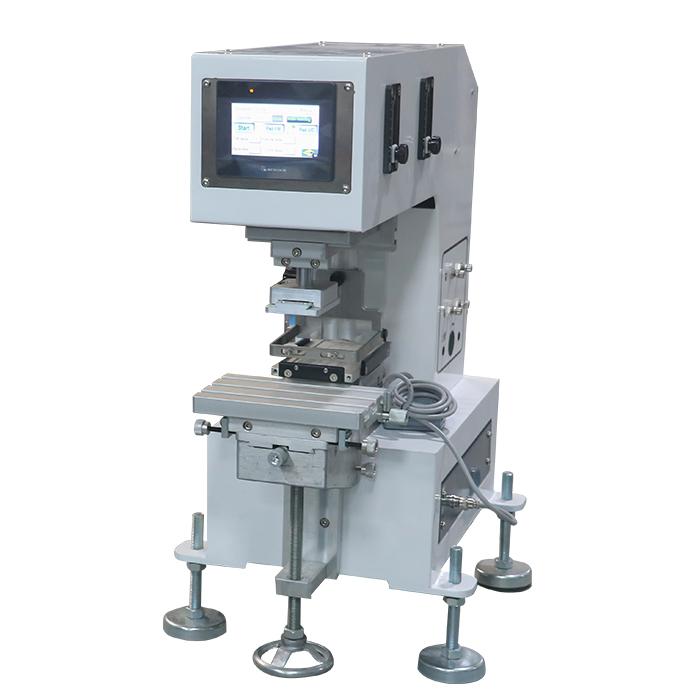

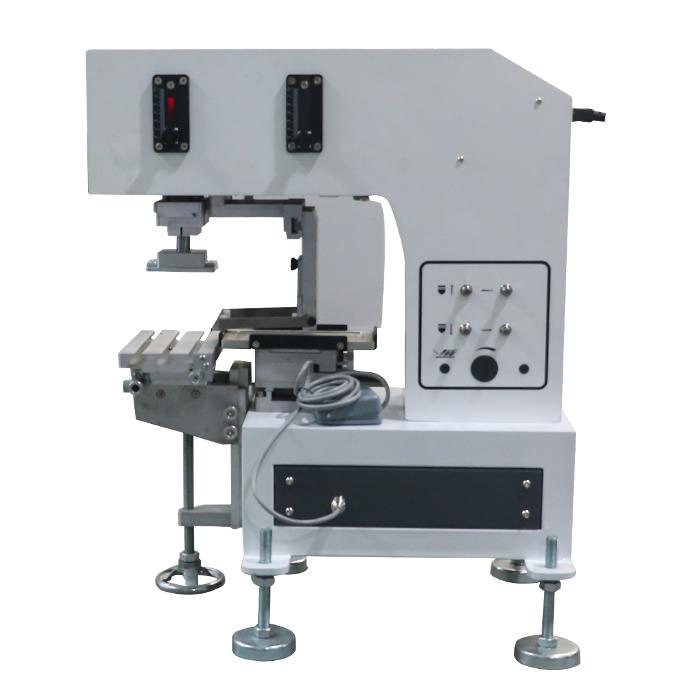

Tabletop type pad printer
Application︰
The desktop ink cup pad printing machine is currently the pad printing machine with the smallest footprint and the smallest printing area. It is very suitable for small workshop-style processing enterprises. Monochrome pad printing is very advantageous for most small-sized products such as electronics, hardware tools, stationery, gifts, hotel supplies, etc. Although the desktop inkl cup pad printing machine is relatively cheap, it still uses the operating system of the human-machine interface , the operation is easier, and it is especially suitable for installation on the production line to realize online automatic pad printing.
