Product Description

    The fully automatic horizontal flat turntable bottle cap hot stamping machine is an efficient bottle cap hot stamping equipment, which can hot stamp gold decorative lines or silver decorative lines on the edge of the opening end of the bottle cap or in the circumferential direction:

Structural composition
• Turntable system: It is one of the core components of the equipment, usually driven by a high-precision divider. The stations are evenly distributed on the turntable, which can achieve smooth and accurate rotation and positioning of the bottle cap, and provide a stable working platform for hot stamping operations.
• Hot stamping system: It includes silicone rollers, heating hoods, cylinders and other components. The contact area between the silicone roller and the bottle cap will form hot stamping lines. The heating hood provides heat for the silicone roller, so that the electrochemical aluminum foil is transferred to the surface of the bottle cap at a certain temperature and pressure, forming a clear and firm hot stamping effect.

• Loading and unloading system: The loading methods include fully automatic loading and conveyor belt loading, which can transport the bottle caps to the turntable stations in an orderly manner. After the hot stamping is completed, the unloading system automatically collects or transports the bottle caps to the designated position to realize the automation of the entire hot stamping process.

• Control system: Generally, PLC control is adopted, and the touch screen operation interface can accurately control the rotation of the turntable, the lifting and lowering of the silicone roller, the hot stamping time and temperature and other parameters. It also has functions such as fault alarm and production data statistics to ensure the stable operation of the equipment and the consistency of production quality.

Workflow
First, the loading system transports the bottle caps to the turntable station; then, the turntable rotates and sends the bottle caps to the hot stamping position, and the silicone roller moves and contacts the bottle caps to perform hot stamping operations on the bottle caps; after the hot stamping is completed, the turntable continues to rotate and sends the hot stamped bottle caps to the unloading position, where they are collected or transported by the unloading system. This cycle is repeated to achieve continuous and efficient production.

Features and advantages

• High-precision hot stamping: It can achieve precise line hot stamping, which is firm and beautiful, and enhances the added value and brand image of the bottle cap.

• Efficient production: The multi-station design and automated operation process greatly improve production efficiency and can meet the needs of large-scale production.

• Wide range of applications: It can be used for hot stamping of bottle caps of different materials, shapes and sizes, such as plastic caps, metal caps, etc., and can also be hot stamped on the top or side as needed.

• Stable and reliable: It adopts high-quality mechanical transmission and electrical control components, and the equipment runs stably, has a low failure rate, and a long service life, which reduces the company's equipment maintenance costs and production risks.

H-TC50KMA automatic bottle cap foil  heat transfer Machine //Structure
Working table	10 stations rotating workbench  ;
Stamping Head drive	Pneumatic drive
Foil collecting method	Motor-drive , Collecting time adjustable
Press adjustment	Front-back of stamping head
Temperature control	Heating tube heat up，Automatically temperature controlling, temperature free setting
Stamping roller size	Width: 100mm, diameter: 125mm.
H-TC50KMA Automatic bottle kids foil heat transfer machine //Usage and characters
Guide	Products suitable for large area flat and cylindrical products, thermal transfer process; Everyday household items, household appliances, toys, plastic gifts, etc. essential thermal transfer machines; Pneumatic structure design, the transfer process more stable, the pressure more evenly;
Application fields	Plastics thermal transfer; Woodware thermal transfer machine，stamping, Plastics Bronzing ，Glass and metal Heat transfer; All kinds of Round and irregular container cap, lid; cosmetic lids.
H-TC50KMA automatic bottle caps foil heat transfer Machine //Parameter
Technical parameters	Diameter of stamping roller :plate: 125×100 mm; Heater Wattage: 2000W; Stamping height adjustable range =100 mm; Max. stamping diameter: 50mm Stamping temperature adjustable range: 0 - 250oC; Stamping foil pulling length: =150 mm; Stroke of stamping plate: 50 mm; Max. stamping pressure: 600 kgf (7bar); Max. stamping speed: 1100 pcs/hr; Air consumption: 100 litre/min; Dimensions: 1450 x1450 x 1300 mm; Weight: 465 Kg;
Works supply	1 Phase 220V Power supply.
Package list	Package dimension:1.5×1.5×1.35m Gross weight: 439KG; CBM:3.296176
H.S.Code	8443198000
Certificate	CE
H-TC50KMA Automatic bottle caps foil heat transfer machine //Advantage
Function	The program controller, easy to operate; 10 stations rotating workbench, Uniform heat transfer, plastic roller rotation, suitable for cylinder heat transfer can be achieved by installing a different fixture; High-precision photoelectric cell tracking control for easy positioning thermal transfer; Non-location requirements of stamping using a timed feeder by the length of the rolls can be flexibly adjusted; Adjustable worktable, easy to transfer the workpieces of different lengths; The transfer pressure, temperature, speed can be based on different material for the flexible adjustment; The height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products; Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor; Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect; Bench design of the patented floating bodies, in accordance with the outline of the product line floating in the transfer process to maintain the Cots thermal transfer film or foil paper is closely attached to the surface of the product, and profiling Hot Stamping and Heat Transfer. Robot downloading, speed more fast.

Price Terms︰ Fob Shenzhen

Payment Terms︰ TT

Packing︰ wooden case

Lead Time︰ 15days

Standards Certificate︰ CE

Application︰ Cosmetics and detergents are usually packaged in containers made of polyolefin materials, and these containers need to be sealed with caps. It is very common to hot stamp a gold or silver thread on the opening edge of the bottle cap. Semi-automatic hot stamping machine and automatic hot stamping machine Du Neng hot stamp such lines. For the semi-automatic hot stamping machine, the hot stamping head is a flat surface and a silicone roller, both of which can achieve exquisite hot stamping. when install rotating workbench and robot, production efficiency will greatly improve

Base structure︰ Automatic hot stamping machine for plastic bottle caps is a hot stamping machine specially designed for hot stamping metal lines of various colors on bottle caps. The hot stamping machine adopts a turntable structure, and the hot stamping roller contacts the bottle cap from the side, with strong and uniform pressure.
The hot stamping machine can automatically load and unload the material. The feeding manipulator transfers the bottle caps on the conveyor belt to the turntable in turn, and the turntable turns to transfer the bottle caps to the hot stamping position. The silicone roller moves and compresses the bottle under the drive of the cylinder. When the cap rotates, the bronzing paper will be transferred to the mouth of the bottle cap under the action of pressure and heat, and the stamped bottle cap will continue to rotate with the turntable until it is sucked by the blanking suction cup and sent to the conveyor belt at the unloading position.

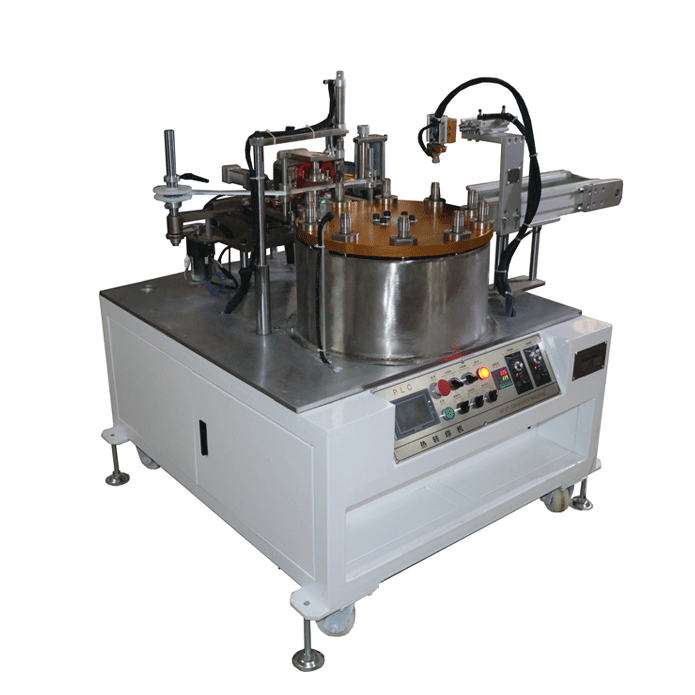

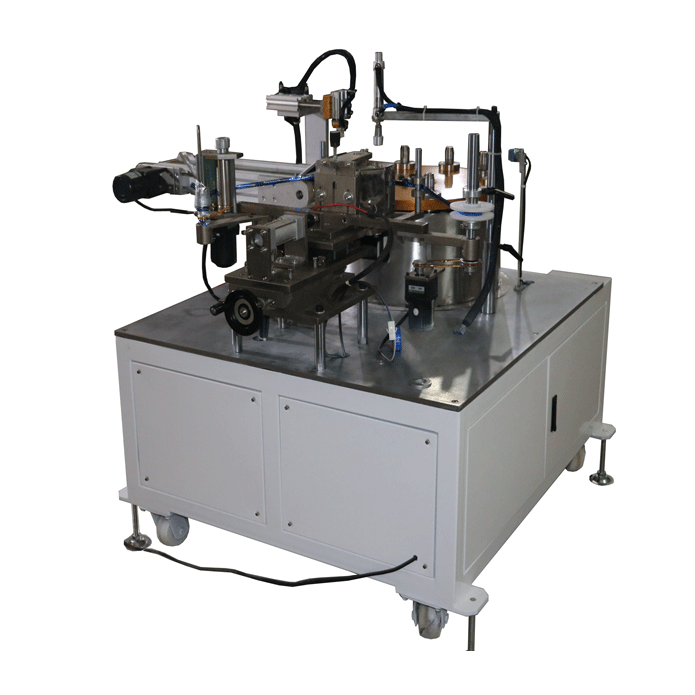

Product Image
