Product Description

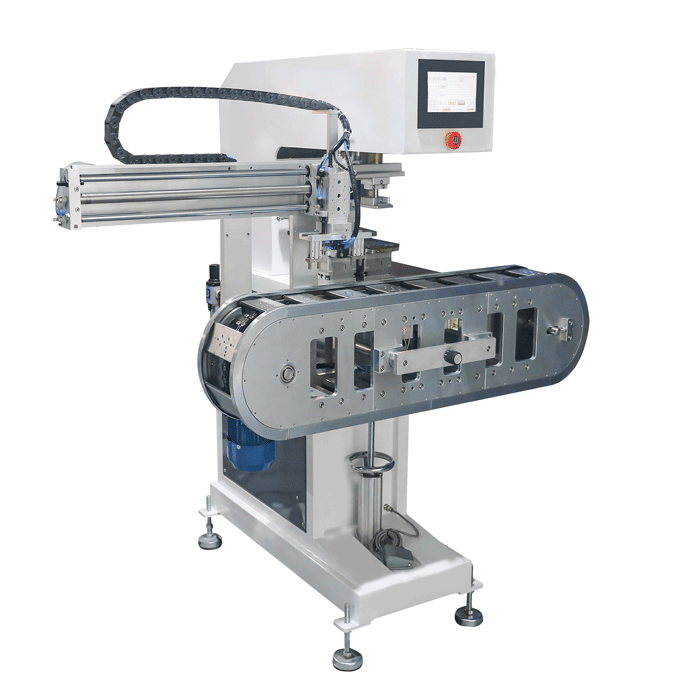

Two-color tank belt automatic unloading PLC pad printer

Tank conveyor belt

• Stable conveying and carrying capacity: The tank conveyor belt has a strong carrying capacity and stability, and can reliably convey all kinds of workpieces to be printed. Whether it is a heavier metal part or an irregularly shaped plastic product with different textures, it can move smoothly on the conveyor belt to ensure that the position of the workpiece is relatively fixed during the printing process, laying a good foundation for accurate printing.

• Durable and adaptable: It is usually made of wear-resistant and tensile-resistant materials, has a long service life, and can adapt to long-term and high-intensity production operations. Moreover, for workpieces of different sizes, through simple adjustment or adaptation devices, it can be well transported to meet diverse production needs, such as in the printing of automotive parts and electronic product shells. It can play an excellent role.

Ink supply with oil cup

• Accurate ink supply to ensure quality: The ink supply method of the oil cup can accurately control the supply of ink, and the amount of ink dipped by the print head each time is stable and accurate, which is particularly critical for two-color printing. It can ensure that the two colors of ink are in proper proportion and evenly distributed during printing, so that the color saturation, clarity and color transition of the printed pattern can reach a high level, achieving high-quality two-color printing effect, making the printed logos, patterns, etc. more vivid and delicate.

• Environmental protection and easy maintenance: The relatively closed oil cup structure reduces ink volatilization, helps to create a good working environment, and also meets environmental protection requirements. At the same time, when it is necessary to change the ink color, clean and maintain, the operation is relatively simple. It only needs to deal with the inside of the oil cup accordingly, which reduces the possibility of affecting the printing quality due to problems such as ink residue, and facilitates daily production management.

Touch screen operation

• Intuitive and convenient control: The touch screen operation interface is simple and clear, integrating many complex functions together. Operators can easily complete various operations such as printing speed, pressure parameter setting, two-color ink switching, conveyor belt start and stop control, etc. through simple touch and click. There is no need to remember cumbersome key commands, which greatly reduces the difficulty of operation, and novices can quickly get started and operate proficiently.

• Real-time status monitoring: The touch screen can also display the working status information of the pad printer in real time, such as the number of current printings, the unloading status of the robot, the ink remaining in the oil cup, and whether each component is operating normally. The operator can use this to promptly discover abnormal conditions in the operation of the equipment and quickly make corresponding adjustments or repairs to ensure the continuous and stable development of printing work, thereby improving production efficiency and equipment reliability.

Robot unloading

• Accurate and efficient unloading: The robot unloading can accurately remove the printed workpiece from the conveyor belt according to the preset procedures and parameters, and place it in the designated location, such as the finished product collection area or the workbench of the next process. Its unloading accuracy is high, which avoids the problems of workpiece collision and messy placement that may occur in manual unloading, ensuring the integrity of the product and the orderly development of subsequent processes.

• Improve the degree of production automation: In the process of mass production, the robot unloading can be seamlessly connected with the workflow of the entire pad printing machine to achieve a continuous and automatic production mode, greatly reducing manual intervention, not only improving production efficiency, but also reducing labor costs. It is especially suitable for large-scale and efficient printing production scenarios, such as in the toy manufacturing, electrical accessories production and other industries.

Two-color pad printing

• Rich colors and matching: Two-color printing can create a rich and diverse visual effect by reasonably selecting two colors for matching, such as the classic red and black matching to show the atmosphere and stability, and the blue and white matching to create a fresh sense of technology. Using this color combination, patterns and logos with unique beauty and recognition can be printed on the workpiece to meet the personalized needs of different customers for product appearance design.

• Key to high-quality output: From the stable conveying of the tank conveyor belt, the precise guarantee of the ink supply of the oil cup, the precise control of the touch screen operation, to the efficient and precise unloading of the robot, all links work together to ensure the high-quality output of two-color printing. Whether printing fine text, complex graphics, or patterns with high color transition requirements, it can achieve clear, accurate and beautiful effects, thereby improving the added value and market competitiveness of the product. It is suitable for high-end product manufacturing fields with strict requirements on printing quality.

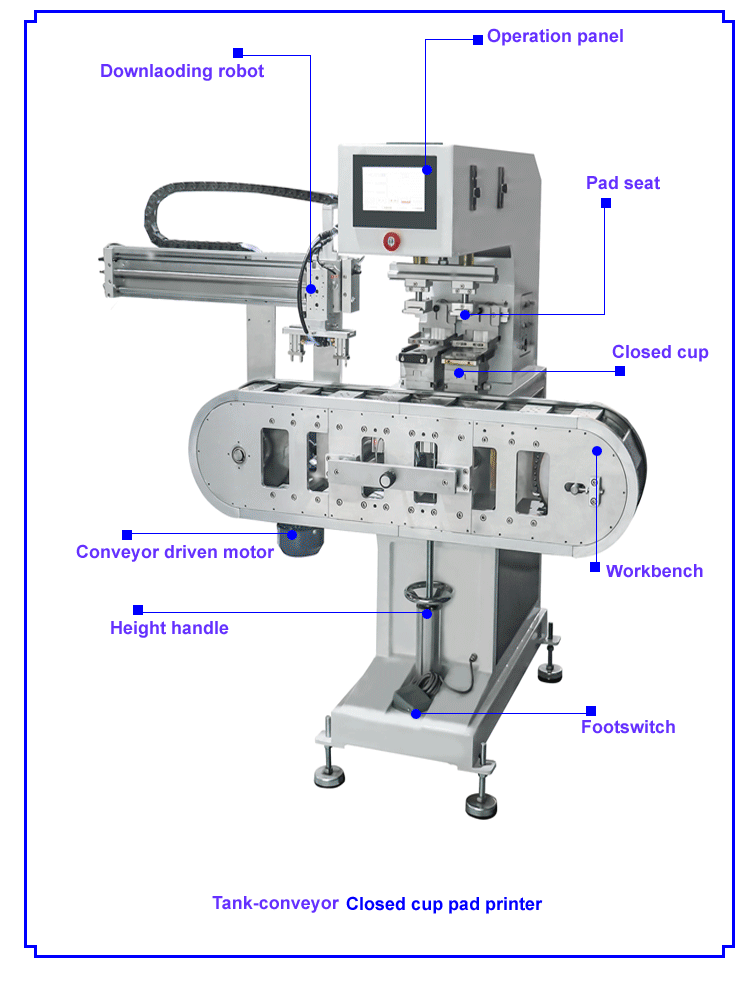

Two colors pad printer with tank-conveyer//Structure
Working table	16 stations tank conveyer-type working table
Shuttle stroke	125mm
Ink supply system	Closed -type system
Plate type and size	10mm Thick steel plate.
Pad dropping control	Simple-cylinder , simultaneously pressing
Ink drying	Heat air
Blanking	Manual
Two colors pad printer with tank belt//Usage and characters
Guide	Print both one color and two colors with conveyer worktable， Printing speed  is more fast. With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%. With coin aluminum structure ensure more stabilization and long life. Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate; Both thick steel plates and thin steel plates installed , Choose according to customer requirements. Can print almost small size objects . So sold very nice in the world. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples; One of china famous brand pad printer. Shuttle stroke: 125mm.
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
Two colors pad printer with tank conveyer //Parameter
Technical parameters	SP2-41016CTK	SP2-41216CTK
	Max. plate size: 100×250mm； Max printing area: 85×130mm; Max. worktable area: 90×125mm； Max. printing speed: 1200pcs/hr； Printable color quantity:2 Cup diameter: Φ90mm. Shuttle stroke: 125mm.	Max. plate size: 100×300mm； Max printing area: 85×170mm; Max. worktable area: 90×125mm； Max. printing speed: 1200pcs/hr； Printable color quantity:2 Cup diameter: Φ90mm. Shuttle stroke: 125mm
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package dimension:1150×840×1410mm Gross weight: 185 CBM: 1.362
H.S.Code	8443198000
Certicate	CE
Two colors pad printer with tank conveyer//Advantage
Function	Microcomputer program controlling operating technique ; Streamline design ensure dexterous Appearance impressions; Coin aluminum structure frame coated Gross-Green color paint; 16-Station tank conveyer working table installed to get more fast printing speed ; Independency pressure adjustment of pad press-printing and picking up ink; Either testing or running mode to operate ; Closed cup to store and coating ink , save ink and protect environment Automatism digital count function; Double colors pad printing with drying through blowing hot air: Ten grade printing speed setting, auto, semi-auto, testing operation mode setting; Sealed cup driven by independent cylinder , ink remove clean

Application︰ The workbench of the pad printing machine is the way of product delivery, and different types of workbenches have different adaptability to the shape and characteristics of the product. The tank belt type pad printing machine is equipped with a conveyor belt similar to the tank crawler structure, and the stations on the conveyor belt are advanced in sequence by rotating up and down to form continuous printing. Compared with the horizontal conveyor belt, the tank belt conveyor has no restrictions on the turning, so the product size can be larger and longer. In terms of overprinting accuracy, the accuracy of the tank belt pad printing machine is also higher. However, when it comes to fragile products such as glass and ceramics, the product should be removed in time to prevent the product from falling and breaking.
