Working principle
• Workbench part: The three-dimensional workbench can be moved precisely in three dimensions. Through motors or pneumatic drives, the position is adjusted in the X, Y, and Z axes to accurately locate the part of the substrate that needs to be printed. This allows the pad printer to adapt to workpieces of different shapes and sizes and ensure the accuracy of the printing position.
• Ink supply part: The ink supply method is an oil cup, and the oil cup is filled with pad printing ink. When the rubber head descends into the oil cup, the special structure of the oil cup cooperates with components such as scrapers to make the rubber head evenly dip in the right amount of ink and remove excess ink, ensuring that the amount of ink carried by the rubber head is moderate and uniform, providing a stable ink source for high-quality printing.
• Rubber head control part: The forward and backward movement of the rubber head is controlled by the pneumatic system. The pneumatic device accurately controls the movement speed, stroke and force of the rubber head according to the set parameters, so that the rubber head can accurately move back and forth between the oil cup and the substrate to complete the ink dipping and transfer process.
• Automatic cleaning part: During the printing process or after a certain number of printing tasks are completed, the automatic cleaning function of the pad head is activated. Usually, the pad head is cleaned through specific cleaning devices, such as cleaning liquid spraying, wiping mechanisms, etc., to remove the ink and impurities remaining on the pad head, ensure the cleanliness of the pad head, and thus ensure the quality of the next printing.
• Operation part: Touch screen operation provides an intuitive and convenient control method. The operator can set various parameters such as the movement parameters of the three-dimensional workbench, the movement parameters of the pad head, the ink supply of the oil cup, the cleaning frequency, etc. through the touch screen, and can also monitor the working status of the pad printer to achieve precise control of the entire printing process.
• Safety door design: The safety door plays a role in protecting the operator. During the operation of the pad printer, the safety door is closed to prevent the operator from contacting moving parts and dangerous areas such as high temperature and high pressure, reducing the occurrence of accidents.
Application scenarios
• Electronic industry: used for printing shells, buttons, labels and other parts of electronic products, such as mobile phone cases, computer keyboards, electronic component logos, etc. The high-precision characteristics can meet the strict requirements of electronic products for printing quality.
• Automotive industry: Printing on automotive parts such as dashboards, buttons, nameplates, etc. The three-dimensional workbench and high-precision characteristics can adapt to various complex shapes of automotive parts, ensuring the accuracy and clarity of the printed pattern.
• Medical device industry: Printing on the shells, labels, etc. of medical devices requires high printing quality and no pollution. The automatic cleaning function of the rubber head can ensure the hygiene and safety of the printing process.
Advantages
• High-precision printing: The three-dimensional workbench and precise rubber head control ensure the accuracy and stability of the printing position, and can achieve high-precision printing effects to meet the needs of industries with high requirements for printing quality.
• Convenient operation: The touch screen operation interface is intuitive and easy to understand, which is convenient for operators to quickly set parameters and monitor the operating status of the equipment, improving work efficiency.
• Automatic cleaning function: It ensures the cleanliness of the rubber head, reduces printing quality problems caused by rubber head contamination, and also extends the service life of the rubber head.
• Safe and reliable: The safety door design effectively protects the safety of operators and reduces the risk of accidents.
|

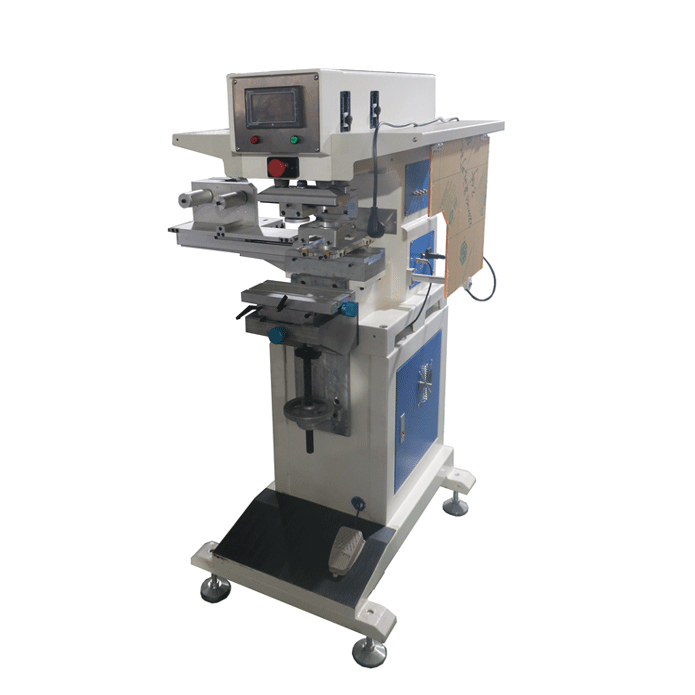

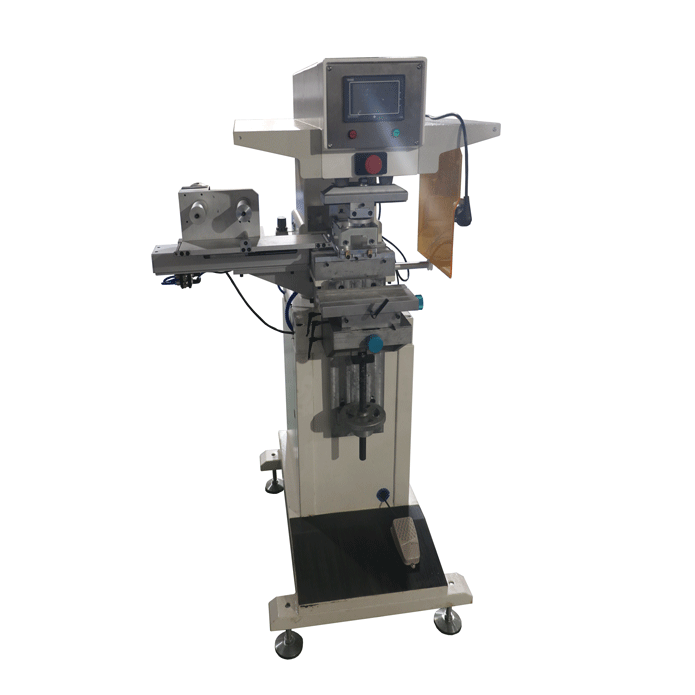

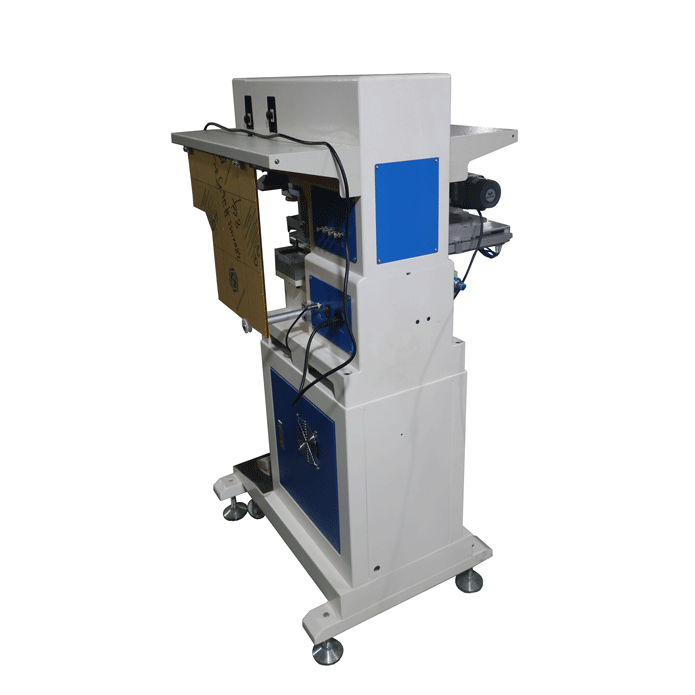

One color pad printer with automatically pad-clean device //Structure
|
|
Working table
|
Standard working table with 3-size adjustment
|
|
Ink supply system
|
Closed -type system
|
| Pad treatment |
Automatic rubber pad chean device |
|
Plate type
|
10mm Thick steel plate.
|
|
Pad dropping control
|
Simple-cylinder , simultaneously pressing
|
|
One color pad printer//Usage and characters
|
|
Guide
|
- Installing pad clean device to increase the pad printing quality;
- With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%.
- With coin aluminum structure ensure more stabilization and long life.
- Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
- Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
- Can print almost small size objects . So sold very nice in the world.
- Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
- Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
|
|
Application fields
|
Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
|
|
One color pad printer //Parameter
|
|
Technical parameters
|
P1-408CP
|
- Max. steel plate: 100 ×200mm；
- Ink cup size: Ф90mm；
- Max. printing area :80×80 mm ；
- Printable color quantity:1；
- Max. printing speed: 1300 pcs/h。
|
| |
P1-410CP
|
P1-412CP
|
- Max. plate size: 100×250mm;
- Ink cup diameter: Ф90mm;
- Max. printing area: 80×130mm;
- Max. printing speed: 1100pcs/h;
- Printable color quantity:1
|
- Max. plate size: 100×300mm;
- Ink cup diameter: Ф90mm;
- Max. printing area: 80×170mm;
- Max. printing speed: 1000pcs/h;
- Printable color quantity:1
|
|
Works supply
|
- 110V-220VPower supply；
- 5-7Bar Compress air；
|
|
Package list
|
- Package size:0.970×0.900×1.480m;
- Gross weight: 126KG;
- CBM: 1.2921
|
|
H.S.Code
|
8443198000
|
|
Certificate
|
CE
|
|
One color pad printer //Advantage
|
|
Function
|
- Automatically pad clean device for more high printing quality;
- Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
- T-slot structure, easy installation of fixtures and products;
- Hand pick and place workpiece, operating more handy;
- PLC program control, the movement is more accurate and reliable;
- Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
- Equipped with four counters, can effectively measure the number of products;
- Structure using die-casting aluminum, lightweight and solid.
- Independent Rubber pad up and down stroke and speed adjustment function;
- Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
- Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
- Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
- World famous pneumatic components to ensure the long service life of machine;
- Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.
|
